Deploy Vineforce Teams on Azure App Service (Linux Container)

This guide explains how to deploy Vineforce Teams on Microsoft Azure App Service using a Linux-based Docker container.

The Vineforce Teams Docker image is publicly available on Docker Hub. You can deploy the image directly to Azure App Service without using Azure Container Registry.

Prerequisite: Before starting, ensure you have completed the Database Setup using the migrator image, and have your database connection string ready.

Prerequisites

Before you begin, make sure you have:

An active Microsoft Azure subscription
Permission to create and manage Azure App Services and related resources
An Azure Resource Group
Azure CLI installed (if using command-line deployment)
A database and valid database connection string (from Database Setup)
An Azure Storage account and storage connection string for screenshots and logs
A public application URL/domain for Vineforce Teams
Valid reCAPTCHA keys if reCAPTCHA is enabled in your environment

Step 1: Create an Azure App Service

When configuring the Web App, use the following general settings:

Setting	Value
Publish	Container
Operating System	Linux
Region	Select the Azure region appropriate for your environment
App Service Plan	Select or create an appropriate plan
Web App Name	Use a unique name for your application

After configuring the required options, review the settings and create the Web App.

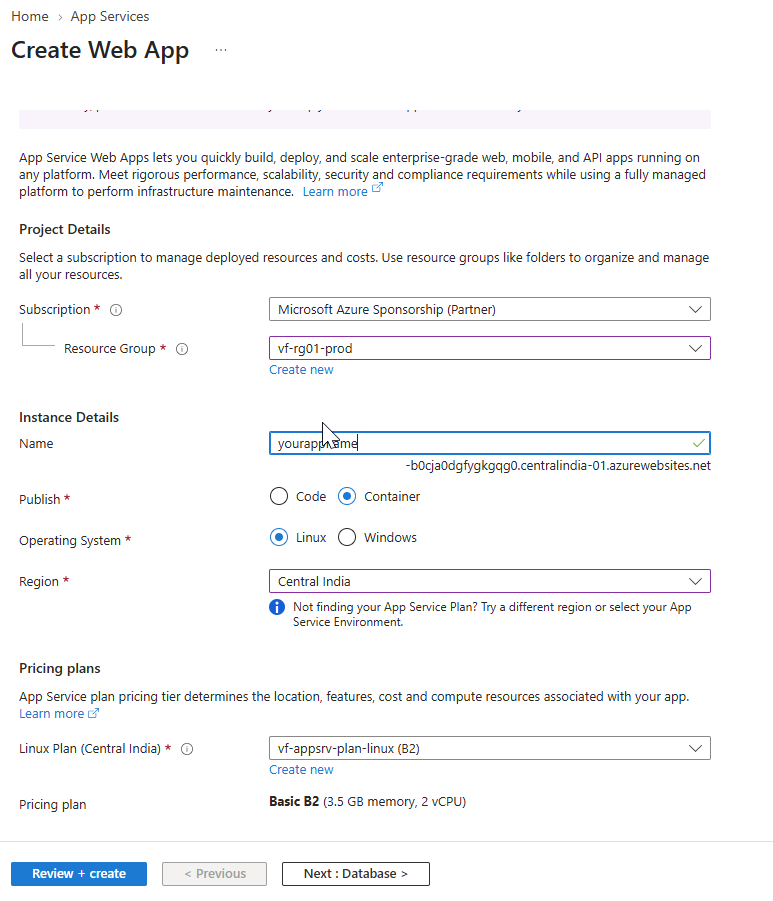

Create Web App

Step 2: Configure the Vineforce Teams Docker Container

After the Azure App Service has been created, open the Web App in the Azure Portal.

Navigate to the container configuration section and configure the application to use an image from a public container registry.

Container Image Configuration

Select the option for an Other Container Registry rather than Azure Container Registry.

Use Docker Hub as the image source.

Setting	Value
Image Source	Other Container Registry
Registry Server URL	`https://docker.io`
Image and Tag	`vineforce/vineforce-teams:main`
Container Port	`8080`

The main tag represents the Vineforce Teams image that should be deployed for this configuration.

Azure App Service will pull the public Docker image from Docker Hub and start the container.

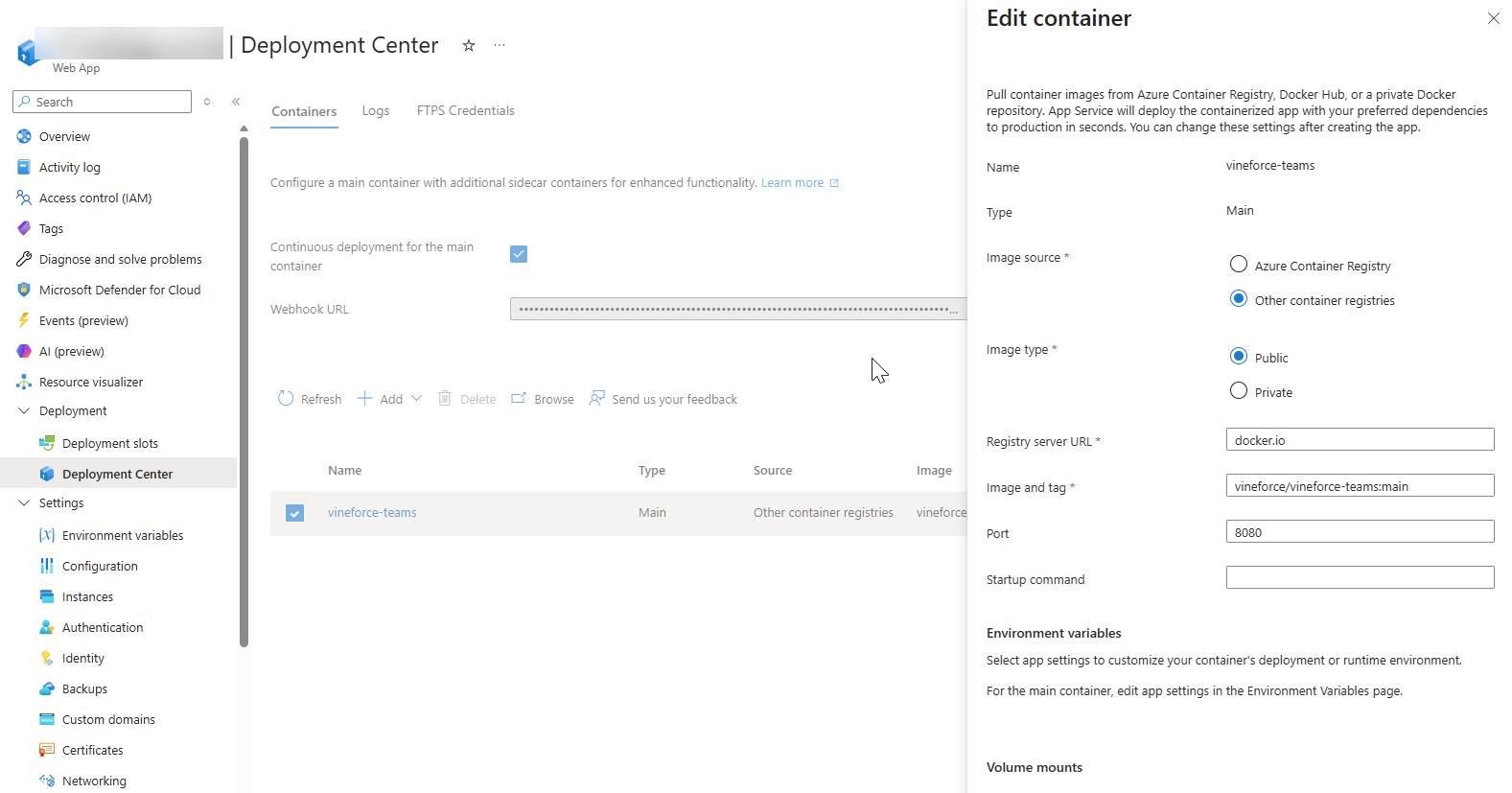

Container Configuration

Container Port

Vineforce Teams listens on port 8080 inside the container.

Make sure the App Service configuration and application settings use port 8080.

Step 3: Configure Application Environment Variables

After configuring the Docker container, configure the application settings required by Vineforce Teams.

These settings allow the application to communicate with:

Your database
Your Azure Storage account
Your public application URL
Your client and server endpoints
reCAPTCHA
Other services required by your environment

You can configure the settings manually in the Azure Portal or use the Azure CLI/PowerShell commands below.

note

Important: Do not copy production credentials, connection strings, secret keys, or private values into public documentation. Replace the example values below with your own values and keep secrets secure.

Update the Environment-Specific Variables

Before running the script, update these values:

Variable	Example	Description
Subscription ID	`your-subscription-id`	Azure subscription where the App Service is deployed
Resource Group	`vf-rg01-prod`	Azure Resource Group containing the App Service
App Service Name	`vf-webapp-base`	Name of your Azure Web App
Application URL	`https://example.yourdomain.com`	Public URL of the Vineforce Teams application
reCAPTCHA Site Key	`your-site-key`	reCAPTCHA site key, if enabled
reCAPTCHA Secret Key	`your-secret-key`	reCAPTCHA secret key, if enabled
Database Connection String	`your-connection-string`	Connection string for the application database (from Database Setup)
Azure Storage Connection String	`your-storage-connection-string`	Connection string for the required Azure Storage account

Open PowerShell or a terminal with Azure CLI installed.

Run:

az login

List your available Azure subscriptions:

az account list --output table

Select the subscription where the Vineforce Teams App Service is deployed:

az account set --subscription "your-subscription-id"

Verify the selected subscription:

az account show --output table

Step 5: Set the Azure App Service Name and Resource Group

Set the App Service name and Resource Group variables.

For example:

$appName = "your-app-service-name"
$resourceGroup = "your-resource-group"

Example:

$appName = "vf-webapp-base"
$resourceGroup = "vf-rg01-prod"

Replace these values with the actual names from your Azure environment.

Step 6: Verify the Azure App Service

Use the following command to verify that the Web App exists and is accessible:

az webapp show `
  --name $appName `
  --resource-group $resourceGroup `
  --output table

This command displays information about the selected App Service.

You can also check the existing application settings:

az webapp config appsettings list `
  --name $appName `
  --resource-group $resourceGroup `
  --output table

Security note: Be careful when displaying application settings in terminal output because some settings may contain sensitive information.

Step 7: Configure Vineforce Teams Application Settings

Use the following Azure CLI command to configure the application settings.

Before running it, replace all example values with the values from your own environment.

az webapp config appsettings set `
  --name $appName `
  --resource-group $resourceGroup `
  --settings `
  "ASPNETCORE_ENVIRONMENT=Production" `
  "ASPNETCORE_FORWARDEDHEADERS_ENABLED=true" `
  "ASPNETCORE_URLS=http://+:8080" `
  "DOCKER_ENABLE_CI=true" `
  "WEBSITES_CONTAINER_START_TIME_LIMIT=1800" `
  "WEBSITES_ENABLE_APP_SERVICE_STORAGE=false" `
  "WEBSITES_PORT=8080" `
  "App__ClientRootAddress=https://example.yourdomain.com/" `
  "App__CorsOrigins=https://example.yourdomain.com/" `
  "App__ServerRootAddress=https://example.yourdomain.com/" `
  "App__MultiTenancyEnabled=true" `
  "appBaseUrl=https://example.yourdomain.com" `
  "remoteServiceBaseUrl=https://example.yourdomain.com" `
  "Configuration__AzureKeyVault__IsEnabled=false" `
  "Recaptcha__SecretKey=your-recaptcha-secret-key" `
  "Recaptcha__SiteKey=your-recaptcha-site-key" `
  "ConnectionStrings__Default=your-database-connection-string" `
  "Azure__Storage__ConnectionString=your-storage-connection-string"

Important Configuration Values

`ASPNETCORE_ENVIRONMENT`

Defines the ASP.NET Core environment. For production:

ASPNETCORE_ENVIRONMENT=Production

`ASPNETCORE_URLS`

Configures the application to listen on port 8080 inside the container:

ASPNETCORE_URLS=http://+:8080

`WEBSITES_PORT`

Tells Azure App Service which port the container is listening on:

WEBSITES_PORT=8080

`WEBSITES_CONTAINER_START_TIME_LIMIT`

Maximum time Azure App Service allows the container to start:

WEBSITES_CONTAINER_START_TIME_LIMIT=1800

`WEBSITES_ENABLE_APP_SERVICE_STORAGE`

Controls App Service storage mounting for the container:

WEBSITES_ENABLE_APP_SERVICE_STORAGE=false

Application URLs

The following settings should point to the public URL of your Vineforce Teams deployment:

App__ClientRootAddress=https://example.yourdomain.com/
App__CorsOrigins=https://example.yourdomain.com/
App__ServerRootAddress=https://example.yourdomain.com/
appBaseUrl=https://example.yourdomain.com
remoteServiceBaseUrl=https://example.yourdomain.com

Important: Keep the URL format consistent across these settings. Replace https://example.yourdomain.com with your actual application URL.

Database Connection

Set the database connection string (from Database Setup):

ConnectionStrings__Default=your-database-connection-string

Azure Storage

Configure the Azure Storage connection string:

Azure__Storage__ConnectionString=your-storage-connection-string

reCAPTCHA

If reCAPTCHA is enabled:

Recaptcha__SiteKey=your-recaptcha-site-key
Recaptcha__SecretKey=your-recaptcha-secret-key

Multi-Tenancy

Enable multi-tenancy support:

App__MultiTenancyEnabled=true

Azure Key Vault

If not using Azure Key Vault:

Configuration__AzureKeyVault__IsEnabled=false

Step 8: Verify the Application Settings

After setting the configuration, run:

az webapp config appsettings list `
  --name $appName `
  --resource-group $resourceGroup `
  --output table

Verify that the required application settings have been added.

Security note: Avoid sharing terminal screenshots that expose database passwords, connection strings, API keys, reCAPTCHA secrets, or other credentials.

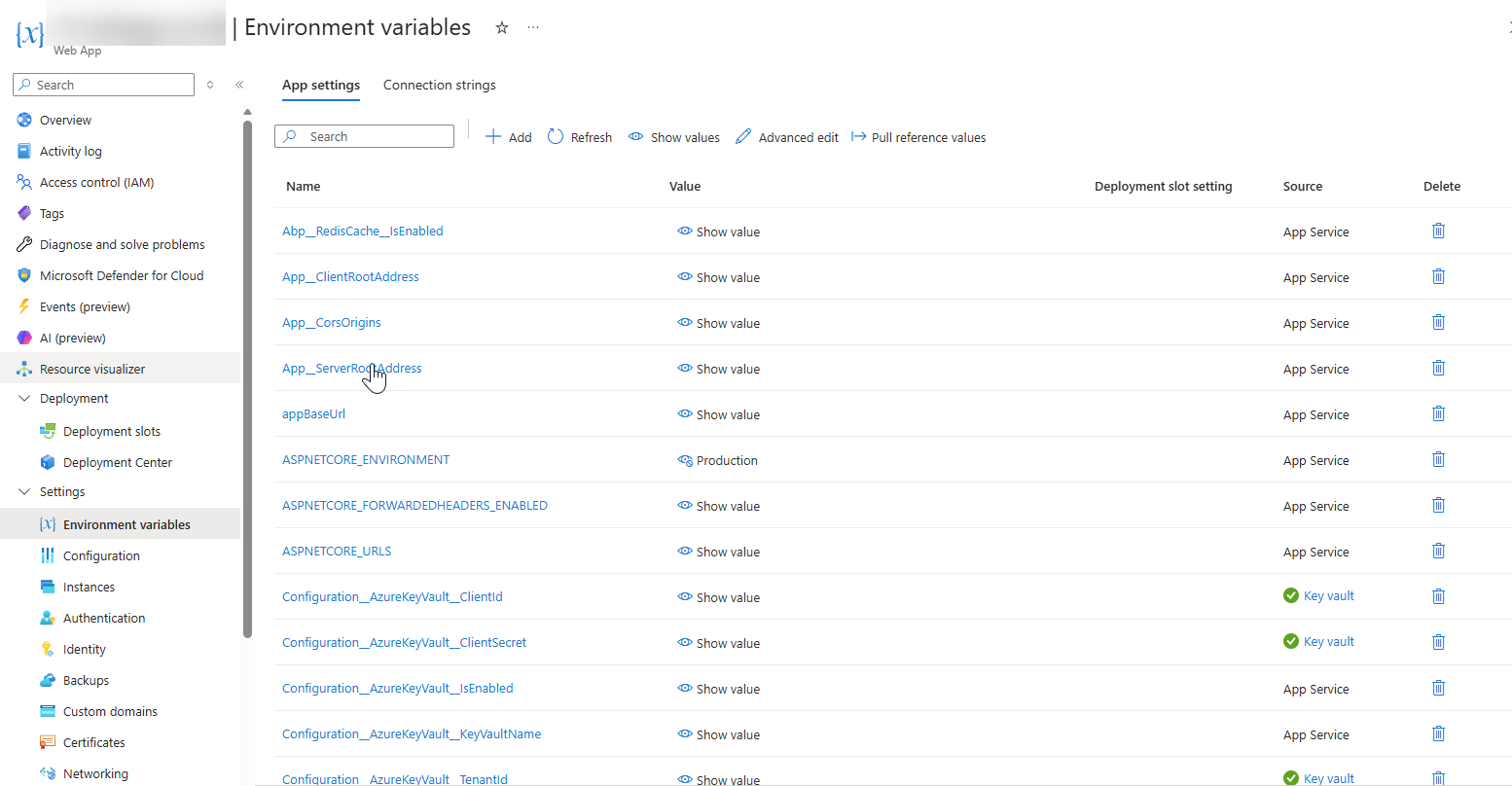

App Settings

Step 9: Restart the App Service

After changing container or application settings, restart the Web App so the new configuration is loaded.

You can restart it from the Azure Portal or run:

az webapp restart `
  --name $appName `
  --resource-group $resourceGroup

Wait for the application to restart and the container to become healthy.

Step 10: Verify the Deployment

Open the public URL configured for your Vineforce Teams application.

For example:

https://example.yourdomain.com

Verify that:

The application loads successfully
The login page is accessible
Static resources load correctly
The application can communicate with the backend
Database-dependent functionality works
Required storage functionality works
No CORS errors are reported by the browser
The application does not show container startup errors

Troubleshooting

Container Does Not Start

Verify that the container port is configured as:

Also verify:

ASPNETCORE_URLS=http://+:8080
WEBSITES_PORT=8080

Check the App Service logs for container startup errors.

Application Is Not Accessible

Verify:

The App Service is running
The container has started successfully
Port 8080 is configured correctly
The application URL points to the correct hostname
DNS is correctly configured if using a custom domain
HTTPS is configured correctly for the production domain

Database Connection Fails

Verify the value of:

ConnectionStrings__Default

Also verify:

Database server accessibility
Database credentials
Firewall/network rules
Required database permissions
SSL/TLS requirements for the database connection

CORS Errors

Verify:

App__CorsOrigins=https://example.yourdomain.com/

Make sure the configured origin matches the URL from which the application is being accessed. Avoid adding unnecessary origins to the production CORS configuration.

reCAPTCHA Is Not Working

Verify:

Recaptcha__SiteKey=your-recaptcha-site-key
Recaptcha__SecretKey=your-recaptcha-secret-key

Make sure the reCAPTCHA configuration allows the domain being used by your Vineforce Teams deployment.

Complete Deployment Checklist

Use this checklist before considering the deployment complete.

Summary

Vineforce Teams can be deployed on Microsoft Azure App Service using its public Docker image from Docker Hub.

The key container configuration is:

Image: vineforce/vineforce-teams:main
Port: 8080

After the container is configured, the application settings must be updated for the target environment, including the application URLs, database connection, Azure Storage connection, and optional reCAPTCHA configuration.

Once the settings are applied and the App Service is restarted, open the configured application URL and verify the deployment.

Production recommendation: Keep all passwords, connection strings, API keys, and secret values secure. Do not commit them to source control or publish them in documentation.

Other Deployment Options

This guide covers Azure App Service deployment. For other deployment scenarios, see:

On-Premise Docker Desktop (coming soon)

← Back to Web Application Overview

Prerequisites​

Step 1: Create an Azure App Service​

Step 2: Configure the Vineforce Teams Docker Container​

Container Image Configuration​

Container Port​

Step 3: Configure Application Environment Variables​

Update the Environment-Specific Variables​

Step 4: Sign in to Azure and Select the Subscription​

Step 5: Set the Azure App Service Name and Resource Group​

Step 6: Verify the Azure App Service​

Step 7: Configure Vineforce Teams Application Settings​

Important Configuration Values​

ASPNETCORE_ENVIRONMENT​

ASPNETCORE_URLS​

WEBSITES_PORT​

WEBSITES_CONTAINER_START_TIME_LIMIT​

WEBSITES_ENABLE_APP_SERVICE_STORAGE​

Application URLs​

Database Connection​

Azure Storage​

reCAPTCHA​

Multi-Tenancy​

Azure Key Vault​

Step 8: Verify the Application Settings​

Step 9: Restart the App Service​

Step 10: Verify the Deployment​

Troubleshooting​

Container Does Not Start​

Application Is Not Accessible​

Database Connection Fails​

CORS Errors​

reCAPTCHA Is Not Working​

Complete Deployment Checklist​

Summary​

Other Deployment Options​

Prerequisites

Step 1: Create an Azure App Service

Step 2: Configure the Vineforce Teams Docker Container

Container Image Configuration

Container Port

Step 3: Configure Application Environment Variables

Update the Environment-Specific Variables

Step 4: Sign in to Azure and Select the Subscription

Step 5: Set the Azure App Service Name and Resource Group

Step 6: Verify the Azure App Service

Step 7: Configure Vineforce Teams Application Settings

Important Configuration Values

`ASPNETCORE_ENVIRONMENT`

`ASPNETCORE_URLS`

`WEBSITES_PORT`

`WEBSITES_CONTAINER_START_TIME_LIMIT`

`WEBSITES_ENABLE_APP_SERVICE_STORAGE`

Application URLs

Database Connection

Azure Storage

reCAPTCHA

Multi-Tenancy

Azure Key Vault

Step 8: Verify the Application Settings

Step 9: Restart the App Service

Step 10: Verify the Deployment

Troubleshooting

Container Does Not Start

Application Is Not Accessible

Database Connection Fails

CORS Errors

reCAPTCHA Is Not Working

Complete Deployment Checklist

Summary

Other Deployment Options
